JTW-PTFE型内衬四氟金属软管（食品 化学 化妆品 制药）

上海淞江减震器集团有限公司官方网站为您介绍：JTW-PTFE型内衬四氟金属软管（食品 化学 化妆品 制药）信息，我们为众多食品、化学、化妆品、制药管道配套专用的软管产品，既能满足介质要求，还有起到减震作用。

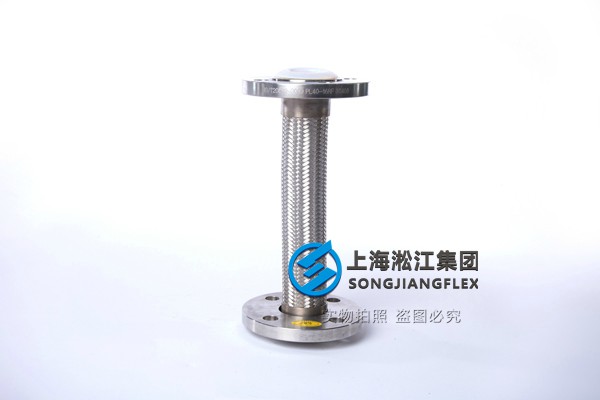

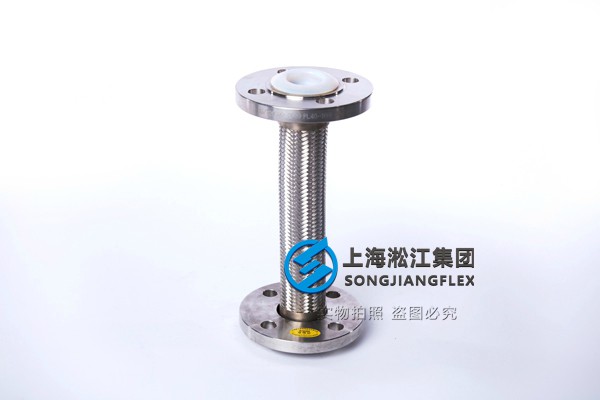

一、JTW-PTFE型内衬四氟金属软管实物拍照：

二、JTW-PTFE型内衬四氟金属软管介绍：

PTFE螺旋衬垫在软管内挤出并封装在法兰或接头上，形成完全卫生的密封，是市场上最卫生的，经批准用于食品，化学，化妆品和制药应用。
JTW-PTFE型内衬四氟金属软管的结构：
光滑或曲折的PTFE衬垫穿过配件并在表面上展开，形成一个接配密封面，安装时不需要再配垫片，可以直接安装，由于流路完全平滑，因此内芯和配件之间不会有任何介质堆积。
JTW-PTFE型内衬四氟金属软管的特性：
该软管几乎耐受所有化学品，但高温下的熔融碱金属或卤素除外。它不粘，易于清洁，温度范围为-40o C至+ 60oC。振动和弯曲的机械阻力非常出色。该产品具有化学惰性，不老化，并具有极高的抗紫外线性能。摩擦的低共效率确保了低压降。它不易燃，经批准用于食品、化妆品和制药应用。
JTW-PTFE型内衬四氟金属软管的典型应用：
推荐用于：化学品输送、食品和油处理以及各种加工应用，从纯水到有害废物食品。
带部聚四氟乙烯衬里的环形波纹金属软管，该软管适用于化工行业，内衬聚四氟乙烯的光滑内表面柔性软管是输送和灌装过程中应用的理想软管产品。
订货说明：该产品没有现货，一般生产周期为10~15天左右。

JTW-PTFE lined Teflon metal hose
PTFE spiral gasket is extruded in the hose and encapsulated on the flange or joint to form a completely hygienic seal. It is the most hygienic on the market and is approved for food, chemical, cosmetic and pharmaceutical applications.
Structure of jtw-ptfe lined Teflon metal hose:
The smooth or tortuous PTFE gasket passes through the accessories and unfolds on the surface to form a joint sealing surface. During installation, it does not need to be equipped with gaskets and can be installed directly. Because the flow path is completely smooth, there will be no medium accumulation between the inner core and the accessories.
Characteristics of jtw-ptfe lined Teflon metal hose:
The hose is resistant to almost all chemicals, except molten alkali metals or halogens at high temperatures. It is non stick, easy to clean and has a temperature range of - 40 o C to + 60 o C. The mechanical resistance to vibration and bending is excellent. The product is chemically inert, non-aging, and has extremely high UV resistance. The low common efficiency of friction ensures low pressure drop. It is non flammable and is approved for food, cosmetic and pharmaceutical applications.
Typical application of jtw-ptfe lined Teflon metal hose:
Recommended for: chemical transportation, food and oil treatment and various processing applications, from pure water to hazardous waste food.
The annular corrugated metal hose with PTFE lining is suitable for the chemical industry. The flexible hose with smooth inner surface lined with PTFE is an ideal hose product for application in the process of transportation and filling.
Order Description: the product is not in stock, and the general production cycle is about 10 ~ 15 days.

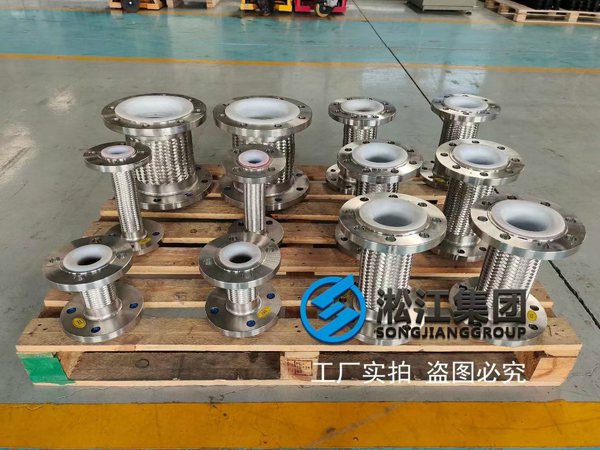

三、JTW-PTFE型内衬四氟金属软管发货现场：

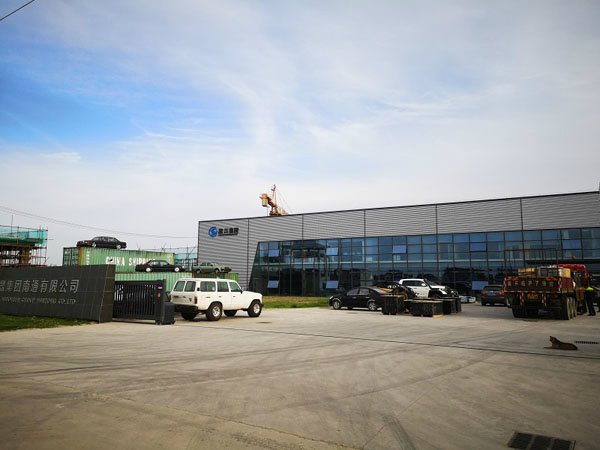

四、JTW-PTFE型内衬四氟金属软管工厂介绍：
