DN40丝扣波纹软管
Corrugated hose thread
上海淞江减震器集团有限公司官方网站为您介绍：DN40丝扣波纹软管信息，淞江集团生产各种管道软连接产品，以下是丝扣波纹软管介绍，该产品具有良好的减震效果，使用成本低，寿命长达10多年。
Shanghai Songjiang absorber group limited official website for your introduction: DN40 screw corrugated hose, soft connection products Songjiang group specializing in the production of various pipelines, the following is the thread of corrugated hose introduction, the product has a good damping effect, low cost, long of 10 years.
性能介绍：
公称通径：DN40mm
自然长度：250mm
轴向压缩：10mm
轴向伸长：5mm
横向位移：20mm
偏转角度：45°
Performance introduction:
Nominal path: DN40mm
Natural length: 250mm
Axial compression: 10mm
Axial elongation: 5mm
Lateral displacement: 20mm
Deflection angle: 45 degrees
产品介绍：
1.产品名称：DN40丝扣波纹软管

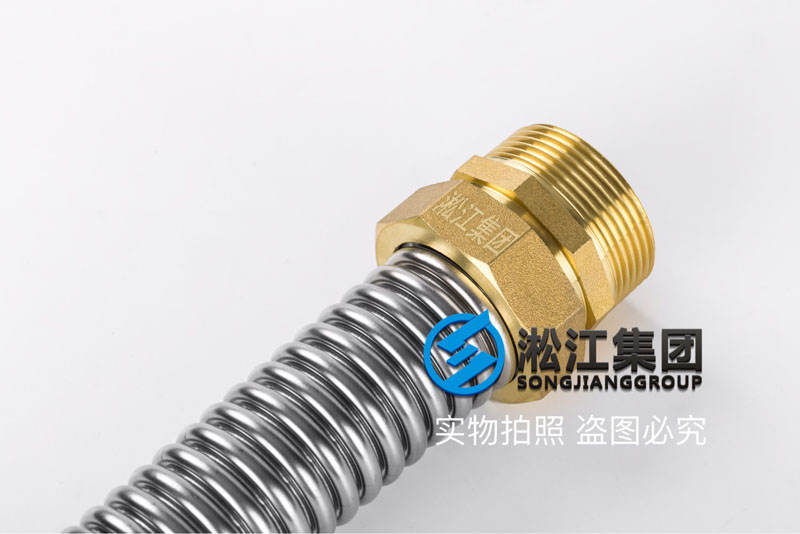

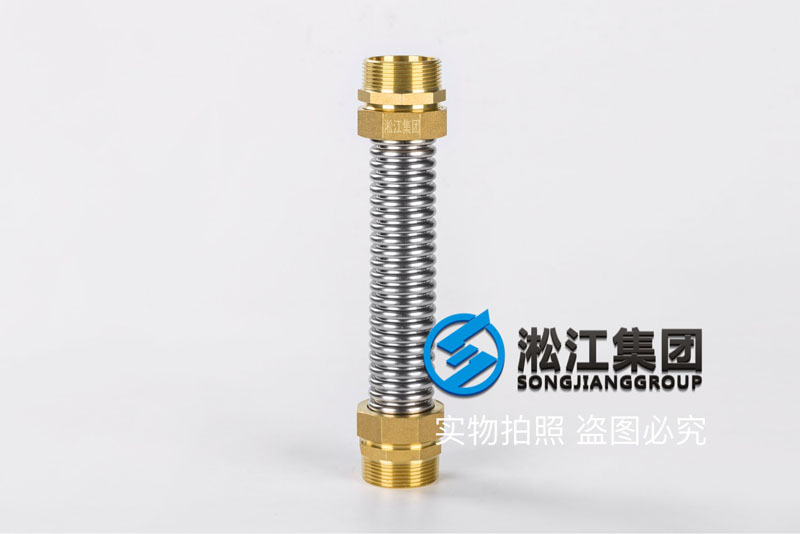

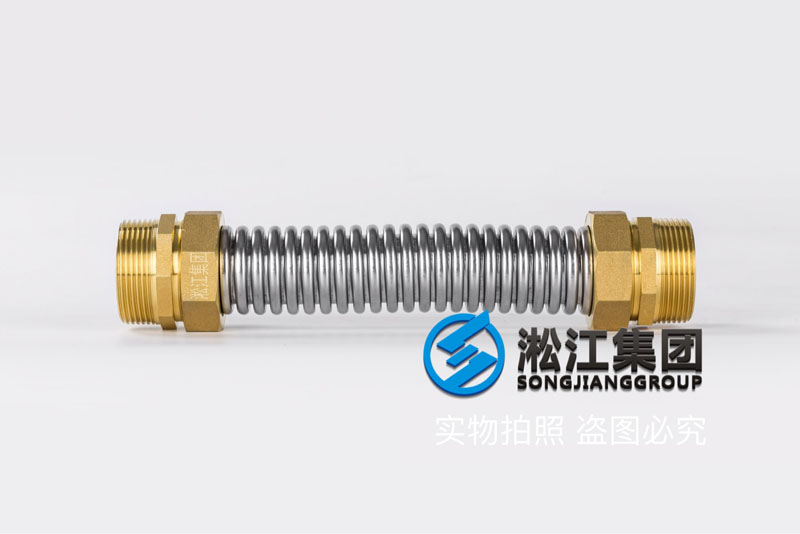

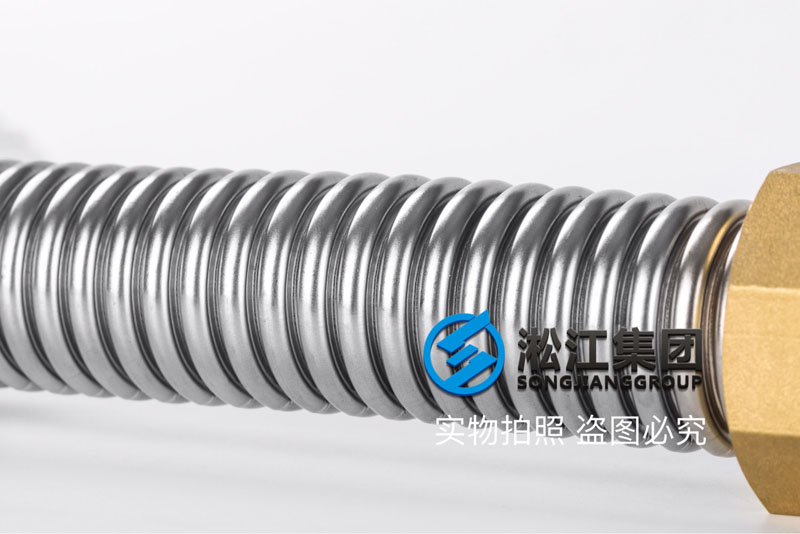

2.产品图片：见上图
3.产品结构：内螺纹接头+外丝
4.产品.点：无需焊接，可按需要长度自行装配
5.产品通径：DN10~DN50
6.制作长度：100mm~1000mm
7.产品材料：
①六角接头：铜
②六角螺母：铜
③密封垫圈：硅橡胶
④波纹管：SUS304
Product introduction:
1. Product Name: DN40?Corrugated hose thread
2. product picture: see the picture above
3. product structure: internal thread joint + outer wire
4. product features: without welding, it can be assembled according to the required length
5. product path: DN10~DN50
6. production length: 100mm~1000mm
7. product materials:
Six angle joint: Copper
Six angle nut: Copper
sealing washer: silicone rubber
Bellows: SUS304以上DN40丝扣波纹软管信息来源于上海淞江减震器集团有限公司官方网站金属软管产品中心，淞江集团生产各种金属软管产品，我厂经过德国莱茵TUV认证，欢迎的我厂实地参观考察。
The above Dn40 thread corrugated hose information comes from the metal hose product center on the official website of Shanghai Songjiang shock absorber Group Co., Ltd. Songjiang group produces various metal hose products. Our factory has been certified by TUV in Rhine, Germany. You are welcome to visit our factory on site.
