DN100国标法兰波纹补偿器

服务内容：DN100国标法兰波纹补偿器

简介：DN100国标法兰波纹补偿器 GB flanged corrugated compensator 上海淞江减震器集团有限公司官方网站为您介绍：DN100国标法兰波纹补偿器信息，淞江集团生产的波纹补偿器产品全部采用国标型法兰生产，这里的国......

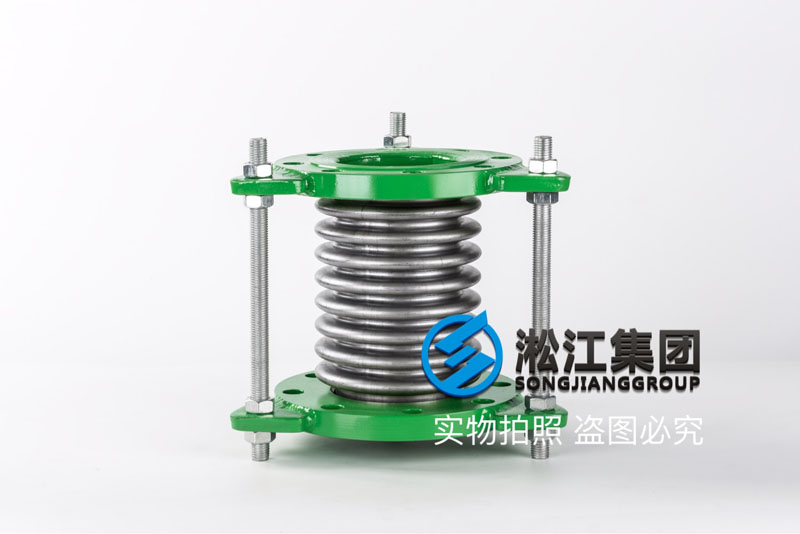

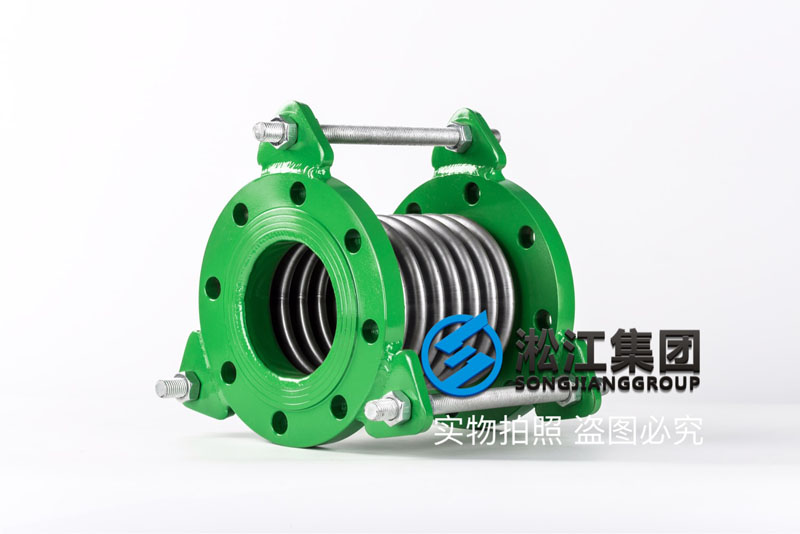

DN100国标法兰波纹补偿器
GB flanged corrugated compensator

上海淞江减震器集团有限公司官方网站为您介绍：DN100国标法兰波纹补偿器信息，淞江集团生产的波纹补偿器产品全部采用国标型法兰生产，这里的国标不单单指的是法兰链接尺寸问题，而且还包括外径和厚度，外径和厚度达到了国标，那么就属于国标法兰了吗？并不是这么简单，还要看法兰材质，淞江集团波纹补偿器法兰全部采用山西锻打法兰，为什么要说是山西锻打法兰呢？业内人士都知道，在国内做锻打碳钢法兰做的.好的就是山西了，所以，正宗的国标法兰就是要法兰材质达标，还要各项参数达标才能算是国标法兰。
Shanghai Songjiang absorber group limited official website for you to introduce DN100 standard flange compensator, corrugated compensator products Songjiang Group production of all GB flange production, here not only refers to the standard flange link the size, but also the diameter and thickness, diameter and thickness reached the national standard, so it belongs to the standard flange? It's not so simple. It depends on the flange material. The flange compensator flange of Songjiang group is all made by Shanxi forging flange. Why do we call it Shanxi forging flange? People in the industry know that the best way to do forged carbon steel flanges in Shanxi is in China, so the authentic GB flanges should be flanges, and all the parameters should be qualified to be the GB flange.

名称：DN100国标法兰波纹补偿器

口径：DN100mm

压力：PN16

波数：8波

厚度：0.8mm

长度：200mm

伸缩量：40mm

波纹材质：不锈钢304

法兰材质：碳钢（锻打）

适用于：管道管线中

作用：吸收管道热胀冷缩的轴向位移

缺点：请在管道进水口加装有效去除氯离子装置（氯离子含量不超过25mg/L），避免水氯离子含量超标，产生针孔腐蚀；

取代者：橡胶接头是用在设备进出口的，可以补偿轴向和横向位移，减震效果是最好的。并且不受管道内部介质的腐蚀。

品牌：淞江集团

制造商：上海淞江减震器集团有限公司

Name: DN100 stainless steel metal expansion joint

Caliber: DN100mm

Pressure: PN16

Wave number: 8 wave

Thickness: 0.8mm

Length: 200mm

Scalability: 40mm

Corrugated material: stainless steel 304

Flange material: carbon steel (forging)

Brand: Songjiang group

Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.

了解该产品参数信息请点击：【样册P93】BGF型不锈钢波纹补偿器

材料说明：

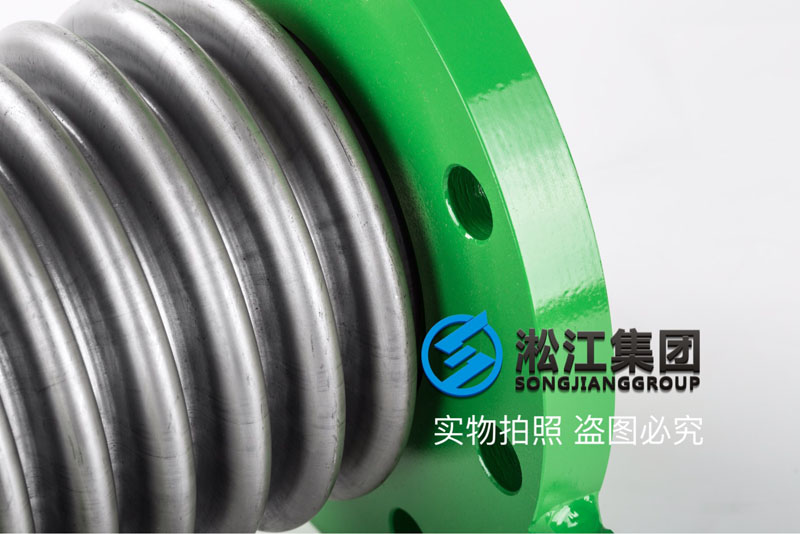

波纹管体：为了更持久的使用寿命，全部采用不锈钢304正材生产，支持各种光谱仪检测，假一赔十，厚度全部厚于同行业标准。

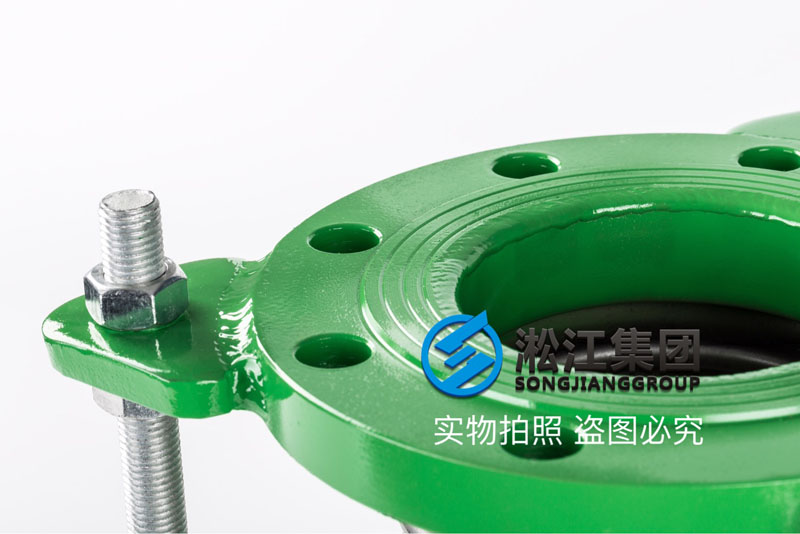

连接法兰：法兰全部采用山西正宗锻打材质，无论是强度还是密封性都是很好的材质，不要拿市面上的铸钢、钢板钢法兰来对比，没有任何可比性。

焊材：焊材全部采高于母材等级标准，让焊接点更加牢固。

限位耳板：耳板全部采用加大加厚尺寸生产，每个型号都可以与同行业同型号去一对一的对比，这就是所谓的没有对比就没有伤害。

限位螺杆：螺杆全部采用8.8级高强度镀锌，为100%确保产品的综合强度，不要与市面的4.8级来对比，无意义。

生产标准：淞江集团通过德国莱茵TUV认证，并且严格按照压力管道生产要求进行生产，让出厂的每一个波纹补偿器产品达到100%的合格。

DN100国标法兰波纹补偿器采用奥氏体不锈钢材料或按用户要求的材料制造，具有优良的柔软性，耐蚀性，耐高温性，耐高压性，在管路中可补偿轴向位移，用以温度补偿和吸收振动、降低噪声、改变介质输送方向、消除管道间或管道与设备间的轴向位移等，国标法兰波纹补偿器对有轴向位移的管线尤为适用。

DN100国标法兰波纹补偿器属于一种补偿元件。利用其工作主体波纹管的有效伸缩变形，以吸收管线、导管、容器等由热胀冷缩等原因而产生的轴向位移，或补偿管线、导管、容器等的轴向位移。也可用于降噪减振。

Material description:

Bellows body: for longer, all stainless steel 304 material is used to support all kinds of spectrometers, and the fake one is ten, the thickness is all thicker than the same industry standard.

Connecting flange: all flanges are made of orthodox forging material in Shanxi, both strength and sealing are the best materials. Do not compare the cast steel and steel plate flange on the market with no comparability.

Welding consumables: welding materials are higher than the level of the parent material standard, let the welding point more firmly.

Limit ear plate: ear boards are all made by increasing thickening dimensions, each model can be compared with the same industry's one type to one to one, which is called no contrast, no harm.

Limit screw: the screw is all 8.8 - grade high - strength zinc plating, which is? to ensure the comprehensive strength of the product, not to compare with the market level 4.8.

Production standard: Songjiang group passes the national pressure pipe production license requirement, and is strictly controlled according to the production requirement of TS pressure pipe, so that every corrugated compensator product of factory reaches? qualified.

DN100 standard flange compensator using austenitic stainless steel material or according to user requirements for the manufacture of materials, with softness, excellent corrosion resistance, high temperature resistance, high pressure, in the pipeline can be connected to any direction, with temperature compensation and vibration absorption and reduce the noise, changing the medium conveying direction, eliminate the mechanical displacement of the pipe or pipe and between devices, especially for the flexible joint with double flange corrugated metal hose on the displacement and vibration of pump and valve etc..

The flanged ripple compensator of the DN100 national standard belongs to a compensation element. The effective expansion and deformation of bellows should be utilized to absorb the size changes caused by thermal expansion, shrinkage and other reasons, or to compensate for axial, lateral and angular displacement of pipelines, pipes and containers. It can also be used for noise reduction and vibration reduction.
