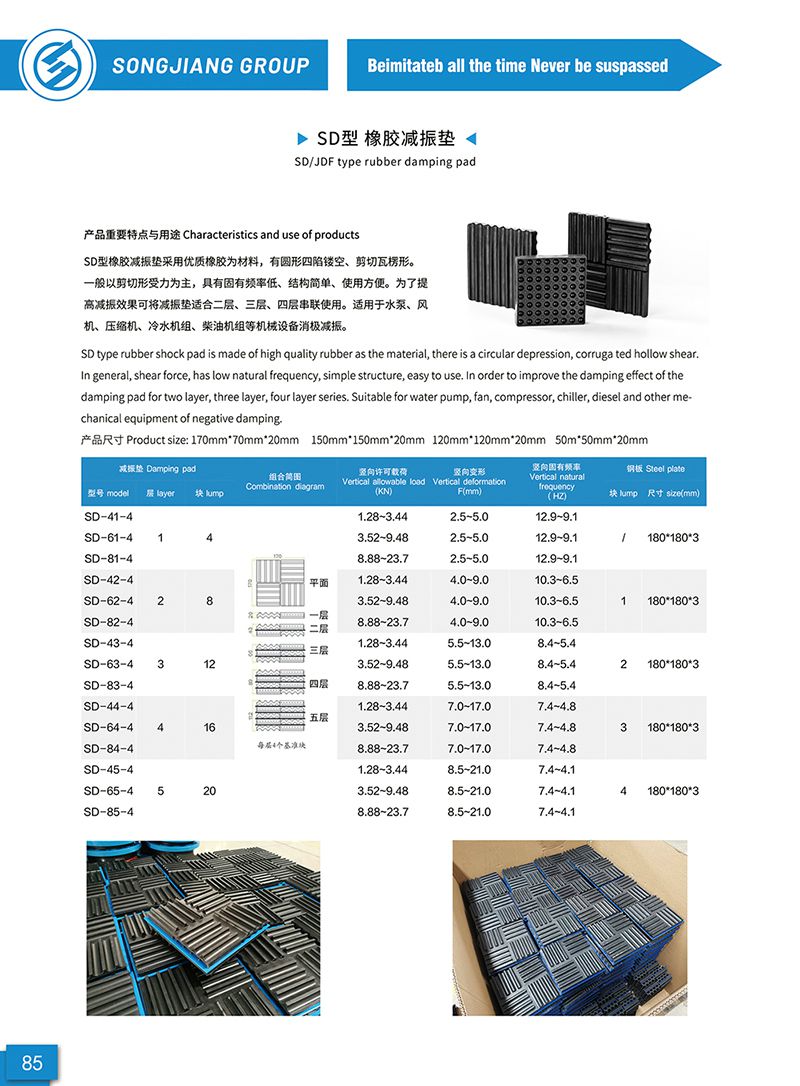

【样册P85】SD型 橡胶减振垫 SD rubber damping pad

上海淞江减震器集团有限公司官方网站电子样册栏目为您介绍：【样册P85】SD型 橡胶减振垫 SD rubber damping pad信息，淞江集团为您提供泵房减振降噪解决方案，为了提高减振效果可将减振垫适合二层、三层、四层串联使用。适用于水泵、风机、压缩机、冷水机组、柴油机组等机械设备消除减振。

产品重要特点与用途? Characteristics and use of products
SD型橡胶剪切隔振垫以橡胶为弹性材料经硫化模压成型，其波浪状表面可降低隔振垫垂向刚度，隔振垫基本块尺寸为84x84x20(mm)该系列产品由一种规格尺寸，三种橡胶硬度隔振垫组成，承载范围从0.2KN~6KN。为提高隔振效果，可多层隔振垫串联使用，并各层之间以金属薄板(3mm)隔开，n层串联隔振垫总刚度为单层的1/n倍，考虑到垂向稳定性，串联后隔振垫的总高度不应超过隔振垫的宽度，当被隔振体较轻时，可将隔振分割成1/2块使用，分割后隔振垫承载能力及刚度也为原来的1/2倍，分割后的隔振垫也可再串联使用。

The SD rubber? shock absorber is manufactured by vulcanization using oil resistant rubber and stretch materials:whost surface can reduce the vertical rigidity.The basic dinension of the shock absorber cushion is 84x84x20(mm).The load range covers from 0.2~6KN．It needs no isolation walls.To improve shock absorption effect, multi-layer.isolation cushion should be used.Sepa-rate, layers can be separated by metal sheet(3mm). The total rigidity of nlayers of cushion are 1/n that of a single layer.When the isolated object is relatively lighter, you can cut itinto 2 pieces.The rigidity is 1/2 that of the original one. The separated isolating cushion can also be used inseries.

SD型橡胶减振垫采用优质橡胶为材料，有圆形凹陷镂空、剪切瓦楞形。一般以剪切形受力为主，具有固有频率低、结构简单、使用方便。为了提高减振效果可将减振垫适合二层、三层、四层串联使用。适用于水泵、风机、压缩机、冷水机组、柴油机组等机械设备消除减振。

SD type rubber shock pad is made of high quality rubber as the material, there is a circular depression, corrugated hollow shear. In general, shear force, has low natural frequency, simple structure, easy to use. In order toimprove the damping effect of the damping pad for two layer, three layer, four layer series. Suitable for waterpump, fan, compressor, chiller, diesel and other mechanical equipment of negative damping.
产品尺寸：170mm*170mm*20mm???? 150mm*150mm*20mm???? 120mm*120mm*20mm???? 50mm*50mm*20mm
Product size
