【EPDM】球墨法兰三元乙丙橡胶接头“外观专利”

服务内容：【EPDM】球墨法兰三元乙丙橡胶接头“外观专利”

简介：【EPDM】球墨法兰三元乙丙橡胶接头“外观专利” "Appearance Patent" for EPDM Joints with Ductile Graphite Flanges 上海淞江减震器集团有限公司官方网站为您介绍：【EPDM】球墨法兰三元乙丙橡胶接头“外观专......

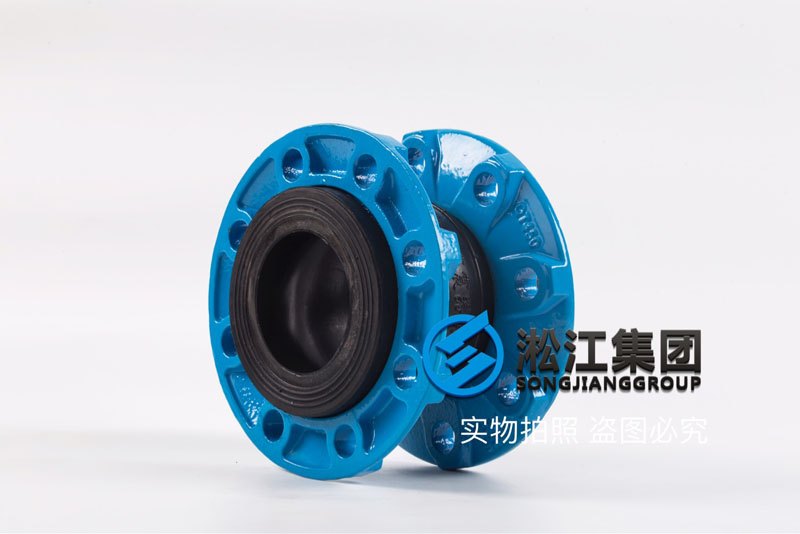

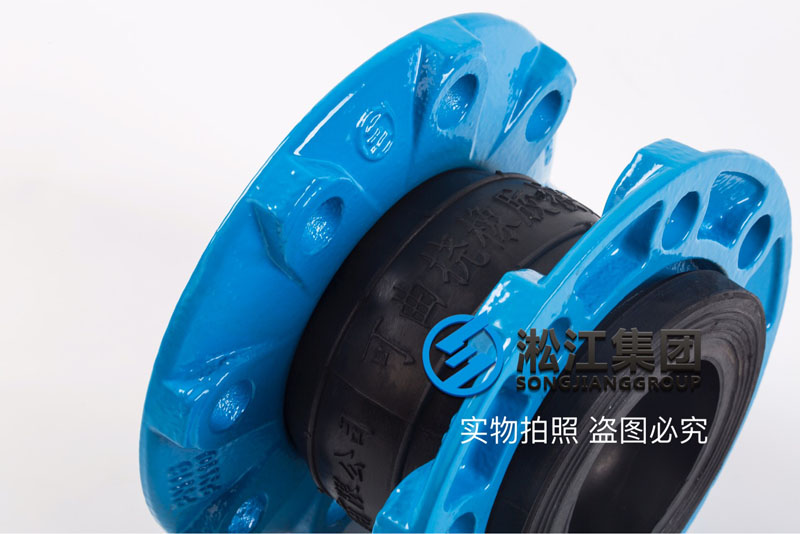

【EPDM】球墨法兰三元乙丙橡胶接头“外观专利”
"Appearance Patent" for EPDM Joints with Ductile Graphite Flanges

上海淞江减震器集团有限公司官方网站为您介绍：【EPDM】球墨法兰三元乙丙橡胶接头“外观专利”信息，淞江集团为众多客户提供新式球墨法兰三元乙丙橡胶接头，法兰采用新型设计，并申请了外观设计专利，施工更轻便，外观更新颖。
The official website of Shanghai Songjiang Shock Absorber Group Co., Ltd. introduces to you: [EPDM] EPDM nodular flange ternary EPDM rubber joint "appearance patent" information, Songjiang Group provides new type nodular flange ternary EPDM rubber joint for many customers, the flange uses new design, and applied for the appearance design patent, construction is lighter, and more convenient. The outlook is more original.

说明：

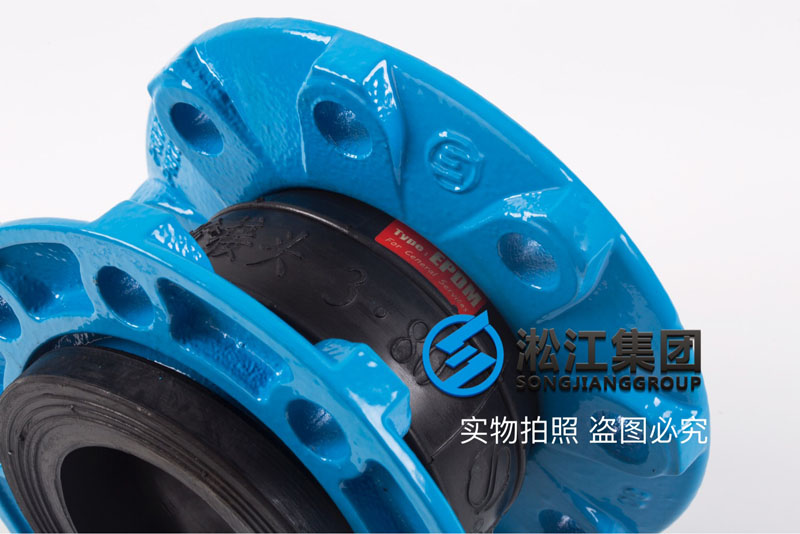

我公司耐高温橡胶接头阀体上有材质标识区，箭头指向EPDM，如果箭头没有指向EPDM，那么该产品不是三元乙丙橡胶接头，请勿在耐酸碱、耐高温环境使用，避免带来安全隐患，可以联系我们。

Explain:

There is a material identification area on the valve body of our company's high-temperature resistant rubber joint, and the arrow points to EPDM. If the arrow does not point to EPDM, the product is not EPDM joint. Please do not use it in acid-base and high-temperature resistant environment to avoid potential safety hazards. You can contact us.

名称：EPDM橡胶接头

型号：KXT-QT450-EPDM

口径：DN80（了解该产品参数信息请点击：【样册P33】KXT型可曲挠橡胶接头）

压力：1.6Mpa

长度：135mm

轴向压缩：12mm

轴向拉伸：6mm

横向位移：10mm

偏向角度：15°

橡胶材质：三元乙丙橡胶（三井4045）

法兰材质：球墨QT450（另有碳钢、不锈钢可选择）

法兰标准：GB/T 9119-2000 （除此法兰标准之外，我厂还可以配套更多法兰标准，如需了解其他法兰标准请点击：橡胶接头法兰标准）

适用介质：弱酸碱、强碱、石灰浆液、脱硫、化工厂污水、高温120度以下；（注明：强酸碱、稀硫酸不能用，要选择内衬聚四氟乙烯橡胶接头才可以使用。）

使用优点：减震、降噪、保护液压设备的长期使用，降低维修成本。

质保期限：12个月

生产厂家：上海淞江减震器集团有限公司

资质证书：合格证、质保书、检验报告、国家型式试验报告、第三方性能检测报告、含量成分检测报告、德国莱茵TUV证书。

Name: EPDM rubber joint

Model: KXT-EPDM

Caliber: DN80

Pressure: 1.6Mpa

Length: 135mm

Axial compression: 12mm

Axial tension: 6mm

Lateral displacement: 10mm

Deviation angle: 15 degrees.

Rubber material: three yuan ethylene propylene rubber (Mitsui 4045)

Flange material: carbon steel / ductile QT450 / stainless steel.

Flange standard: GB/T 9119-2000 (in addition to this flange standard, our factory can also support more flange standards, if you need to know other flange standards, please click: rubber joint flange standard)

Applicable media: weak acid and alkali, strong alkali, lime slurry, desulfurization, chemical plant sewage, high temperature below 120 degrees; (Note: strong acid and alkali, dilute sulfuric acid can not be used, to choose tetrafluororubber joint can be used.)

Advantages: shock absorption, noise reduction, protection of hydraulic equipment for long-term use, reduce maintenance costs.

Warranty period: 12 months.

Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.

Qualification Certificate: Qualification Certificate, Quality Assurance Certificate, Inspection Report, TS Pressure Pipeline Production License of Rubber Joint Industry, National Type Test Report, Third Party Performance Test Report, Content Component Test Report.

相关链接：EPDM橡胶接头含量检测报告
Related links

以下是淞江集团介绍：
The following is the introduction of Songjiang group
