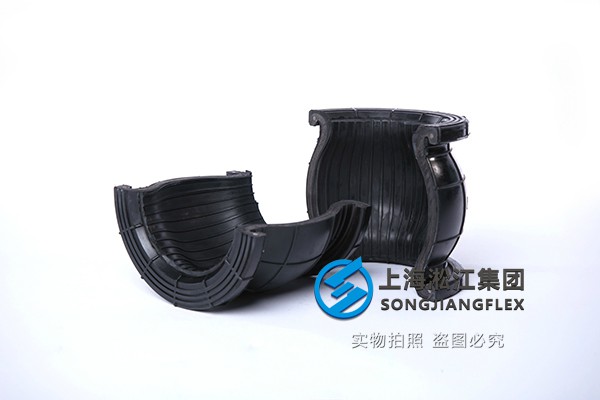

上海淞江减震器集团有限公司官方网站为您介绍：钢丝橡胶接头剖析信息，上海淞江集团专业生产高品质橡胶接头产品，以下是钢丝橡胶接头剖析实物拍照。
钢丝橡胶接头主要在帘布层中间增加钢丝层，该钢丝层与钢丝轮胎材料一样，主要起到真空负压作用，爆破压力也有所增加，不过上海淞江集团生产的常规橡胶接头爆破压力也在8.0Mpa以上。
钢丝橡胶接头没有现货，一般需要生产，生产周期为10个工作日。
上海淞江减震器集团有限公司官方网站为您介绍：【实物剖析】淞江集团单球橡胶接头剖析“教你看清真面目”信息，淞江集团为网民提供橡胶接头行业的性知识，教会你如何火眼金睛辨别一个好产品，以下是详细介绍。
Shanghai Songjiang shock absorber Group Co., Ltd. official website for you to introduce: [physical analysis] Song Jiang Group single ball rubber joint analysis "teach you to see the face of the face" information, Songjiang group for the Internet users to provide professional knowledge of rubber joint industry, teach you how to discern a good product, the following is a detailed introduction.
一、单球橡胶接头剖析实物拍照：

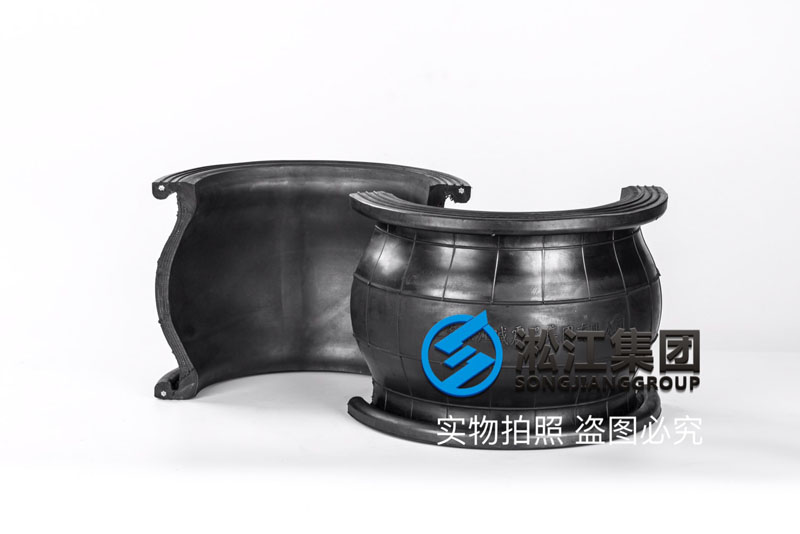

所谓的钢丝就是橡胶管体两端的加强钢丝，这个钢丝起到了防脱的功能，避免橡胶盘从法兰扣槽内脱出，起到加固的作用，然而中间的部分里面并没有钢丝，如下图：
The so-called steel wire is the reinforcing steel wire at both ends of the rubber pipe body. This steel wire plays the function of preventing and removing, avoiding the rubber plate from pulling out of the flange slot and playing the role of strengthening. However, there is no steel wire in the middle part, as follows:
如上图：内部结构主要包括：内层胶、骨架层、外层胶，三大类组成，内层胶起到保护的作用，外层橡胶起到防老化的作用，中间的骨架层起到了承压的作用，淞江集团生产的所有橡胶接头里面都采用与轮胎骨架层一致的聚酯帘布，厚度和层数都是加厚生产，做到万无一失，淞江集团橡胶接头16kg的严格按照国家标准1.5倍的检测压力，轻轻松松到达结果。
For example, the internal structure mainly includes inner layer glue, skeleton layer and outer layer glue. The inner layer is composed of three kinds, the inner rubber plays the role of protection, the outer rubber plays the anti aging effect, the middle skeleton plays the pressure effect. All the rubber joints produced by the Songjiang group are in the same polyester with the tire skeleton layer. The cord, the thickness and the number of layers are all thickened, so that the rubber joint 16KG of Songjiang group is strictly in accordance with the national standard of 1.5 times the test pressure, light and loose to reach the result.
一个优质的橡胶接头并不是只要有良好的生产工艺就合格的，那么原材料的选择也是必不可缺少的一部分重要环节，那么看看淞江集团生产的橡胶接头是如何选择原材料的，了解详细请点击：淞江集团橡胶接头原材料介绍
A high quality rubber joint is not as long as the good production process is qualified, then the selection of raw materials is also a part of the important link, then look at the rubber joint produced by Songjiang group is how to select the raw material, to understand the detailed click the above link.
一套科学 的橡胶接头生产流程的结果必不可缺少的就是性能检测，一般大多数都是检测了承压，承压只是一时的合格，而性能的检测是对产品使用的效果检测，这也是对客户的尊重，后面我们还会有爆破压力检测和疲劳检测等更、更负责的把橡胶接头产品做好。了解淞江集团橡胶接头性能检测请点击：2018年橡胶接头性能检测结果报告
A set of scientific rubber joint production process results must not be lack of performance testing, most of which are tested under pressure, the pressure is only qualified for a moment, and the performance testing is the test of the effect of the use of the product, which is also the respect to the customers, and we will also have the blasting pressure testing and fatigue testing. More professional and more responsible for the rubber joint products. To understand the performance of Songjiang group's rubber joint, please click on the above link.
一个优质的橡胶接头是从：原材料-科学的配方-自动化的混炼-自动化的成型-自动化的硫化-成品检测-性能检测，这样才能对客户说，我们的产品是合格的，请放心使用。
A high quality rubber joint is from: raw material - scientific formula - automatic mixing - automatic molding - Automatic vulcanization - product testing - performance testing in order to say to customers that our products are qualified, please be assured of use.
