上海淞江减震器集团有限公司官方网站为您介绍：矩阵式弹簧减震器 您还在为变压器的噪音而烦恼？信息，淞江集团为干式变压器设计一款矩阵式弹簧减震器，主要用于新型机房变压器减震降噪，我们为众多局维项目配套变压器减震器。

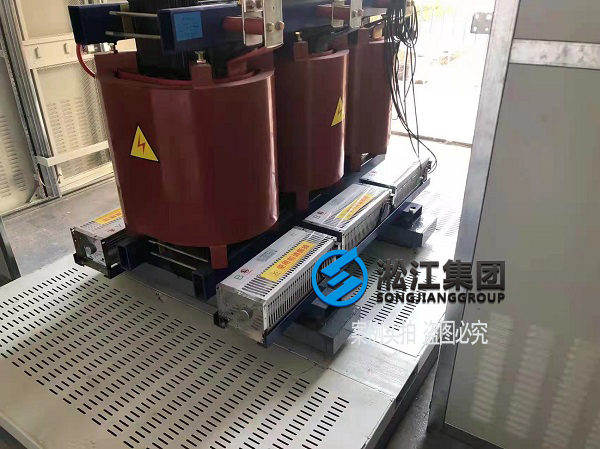

BYQ型矩阵式弹簧减震器介绍：

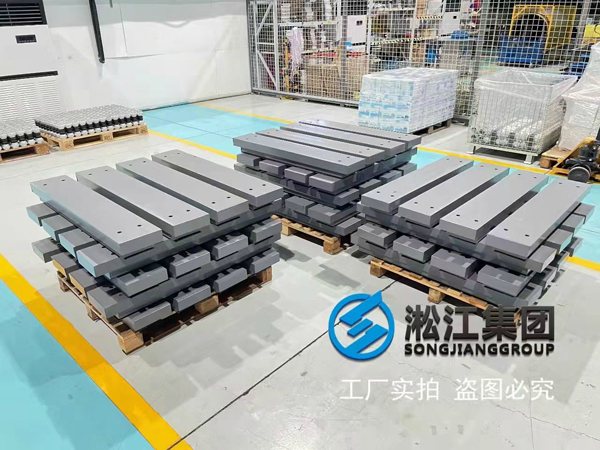

BYQ型弹簧减震器由多组大外径、大变形量弹簧、上下钢板及橡胶防滑垫组成；
主要适用于：现代化机房变压器，例如云数据中心变压器；
产品具有变形量大、性能稳定、隔震效果好、使用寿命长达10年以上；
隔震隔音效果好，可以将变压器隔震率90%以上，隔音量达到15~20dB；
减震器横向刚度与竖向刚度比值大于1.5，稳定性好；
安装施工简单方便，改造费用低；
BYQ型矩阵式弹簧减震器说明：
1、一个变压器使用2个；

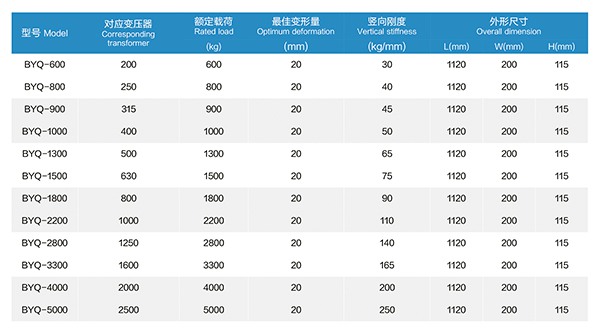

2、表格中对应变压器主要是针对铜芯变压器，如果是铝芯变压器需要计算，铝芯的轻很多；
3、安装前后效果提升90%；
4、货期：7天；
5、质保10年；
6、江浙沪支持上门安装服务（有江苏供电系统安装资质）；
7、检测：夜间检测，包含两次检测（安装前后检测，上门安装用户包含此项）；
8、单个产品大概在50kg左右；
9、干式变压器安装图纸下载；
BYQ spring shock absorber is composed of several groups of large outer diameter, large deformation spring, upper and lower steel plates and rubber anti-skid pads;
Mainly applicable to: modern machine room transformer, such as cloud data center transformer;
The product has large deformation, stable performance, good isolation effect and service life of more than 10 years;
The isolation and sound insulation effect is good, the isolation rate of transformer can be more than 90%, and the isolation volume can reach 15 ~ 20dB;
The ratio of lateral stiffness to vertical stiffness is more than 1.5, and the stability is good;
The installation and construction are simple and convenient, and the transformation cost is low;
Explain:
1. Two for one transformer;
2. The corresponding transformer in the table is mainly for copper core transformer. If the aluminum core transformer needs to be calculated, the aluminum core is much lighter;
3. 90% improvement before and after installation;
4. Delivery period: 7 days;
5. 10 years warranty;
6. Jiangsu, Zhejiang and Shanghai support door-to-door installation service (with Jiangsu power supply system installation qualification);
7. Test: Night test, including two tests (before and after installation);
8. A single product is about 50kg;
相关产品链接：变压器减震器
相关案例链接：【大连华润置地大连湾项目】变压器弹簧减震器合同
]]>Dry type transformer air shock absorber

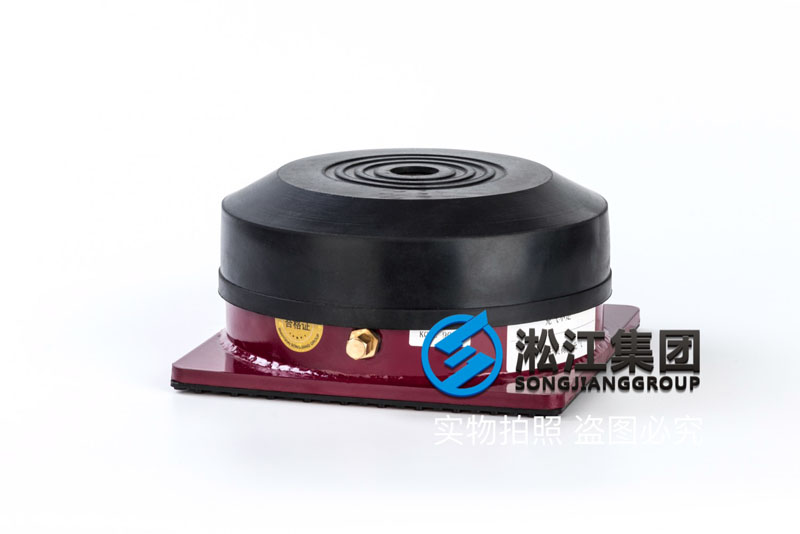

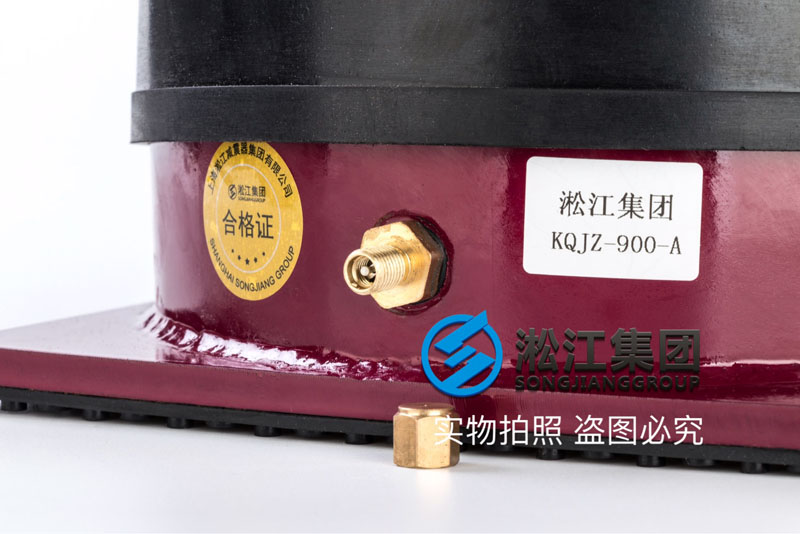

上海淞江减震器集团有限公司官方网站为您介绍：KQJZ-900-A干式变压器空气减震器信息，淞江集团为干式变压器推荐一款减震效果最好的减震器产品：空气减震器，它是目前全球最好的减震器产品，可以将变压器的震动吸收效果好。
Shanghai Songjiang absorber group limited official website for your introduction: KQJZ-900-A dry type transformer air shock absorber, Songjiang group for dry-type transformer to recommend a damping effect best shock absorber products: air damper, which is currently the world's best shock absorber products, The vibration and absorption effect of the transformer is good.

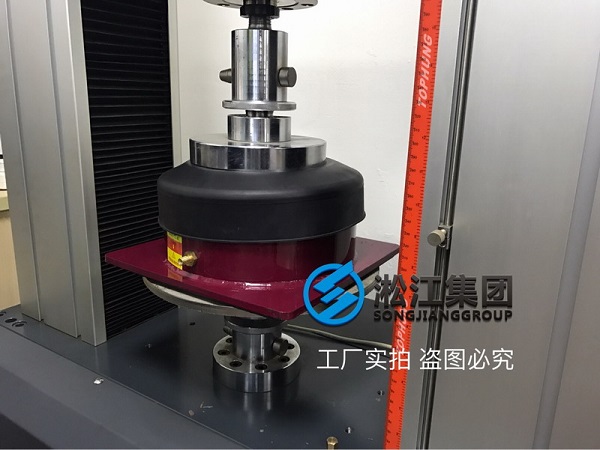

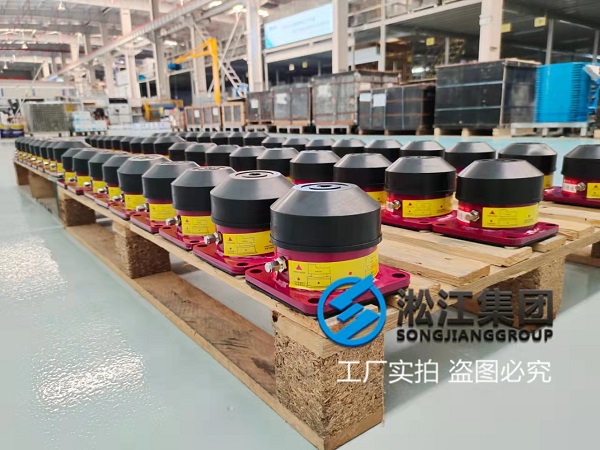

干式变压器空气减震器介绍：
气压式防振装置，符合JISD-4101气垫耐压试验标准
自然频率3Hz~5Hz，最大使用压力4.5 Kg/cm^2。
本体采用多层防锈烤漆。

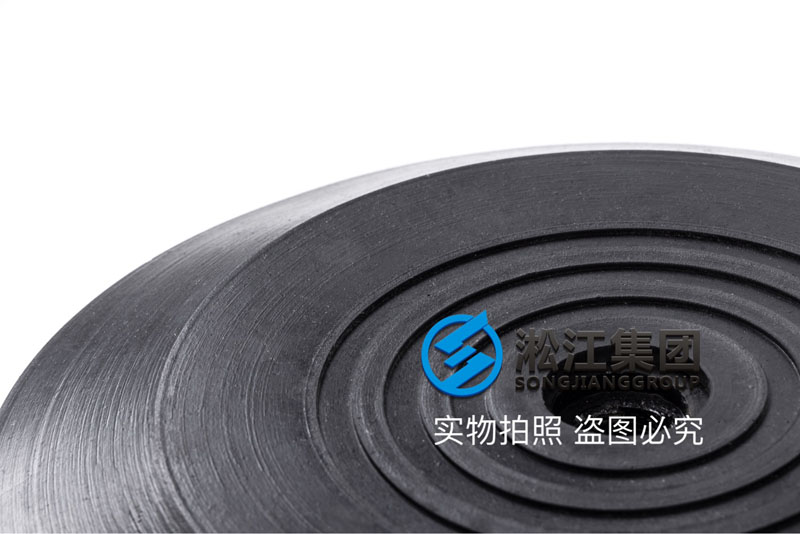

本体采用Neoprene Rubber，一体成型气密性强。
防振效果最高，一般设备减震效果达到97%以上。
荷重范围 50~3500Kg。
可加装防油帽，防止一般油污腐蚀。
使用场合：冷水机组、冲床、泵组、变压器。
了解该产品详细参数请查看：【样册P90】KQJZ-A型 空气减振器
Product introduction:
Air pressure anti vibration device conforms to JISD-4101 air cushion pressure test standard
The natural frequency is 3Hz~5Hz, and the maximum use pressure is 4.5 Kg/cm^2.
Multi layer antirust paint is used in the body.
The body adopts Neoprene Rubber, which has good air tightness in one.
The anti vibration effect is very high, and the efficiency of the general equipment *
The range of load is 50~3500Kg.
Oil proof cap can be added to prevent oil corrosion.
Use: chiller, punch, pump group.
KQJZ型干式变压器空气减震器如何使用详见：KQJZ型空气减震器安装说明
KQJZ air shock absorber shape size and other types of table details以上KQJZ-900-A干式变压器空气减震器信息来源于上海淞江减震器集团有限公司官方网站减震器产品中心，淞江集团生产的空气减震器可以将干式变压器的震动和噪音吸收效果好，是目前全球减震效果最好的减震器产品，淞江集团生产的所有空气减震器产品橡胶全部采用天然橡胶，含胶量高达50%，具有良好的密封性和长期使用寿命，维护简单，是众多高端环境的首要选择，例如：星级酒店、高端写字楼、楼层设备等对减震效果要求很高的环境。
The above KQJZ-900-A dry-type transformer air shock absorber information from the Shanghai Songjiang absorber group limited official website shock absorber product center, air damper Songjiang Group production can be dry transformer vibration and noise , is currently the world's best damping effect of shock absorber products, all the air shock absorber rubber products Songjiang group the production of all the Dongfeng 1# natural rubber, rubber content is as high as , with good sealing and long, simple maintenance, is the only option, many high-end environment such as hotels, high-end office buildings, floor equipment requires high damping effect on the environment.
KQJZ air shock absorber shape size and other types of table details以上KQJZ-900-A干式变压器空气减震器信息来源于上海淞江减震器集团有限公司官方网站减震器产品中心，淞江集团生产的空气减震器可以将干式变压器的震动和噪音吸收效果好，是目前全球减震效果最好的减震器产品，淞江集团生产的所有空气减震器产品橡胶全部采用天然橡胶，含胶量高达50%，具有良好的密封性和长期使用寿命，维护简单，是众多高端环境的首要选择，例如：星级酒店、高端写字楼、楼层设备等对减震效果要求很高的环境。
The above KQJZ-900-A dry-type transformer air shock absorber information from the Shanghai Songjiang absorber group limited official website shock absorber product center, air damper Songjiang Group production can be dry transformer vibration and noise , is currently the world's best damping effect of shock absorber products, all the air shock absorber rubber products Songjiang group the production of all the Dongfeng 1# natural rubber, rubber content is as high as , with good sealing and long, simple maintenance, is the only option, many high-end environment such as hotels, high-end office buildings, floor equipment requires high damping effect on the environment.
使用案例：上海舜元产业园重建扩建项目
]]>

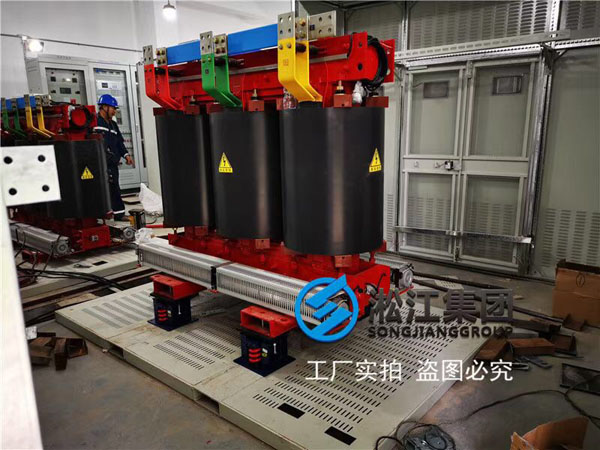

Dry type transformer spring shock absorber

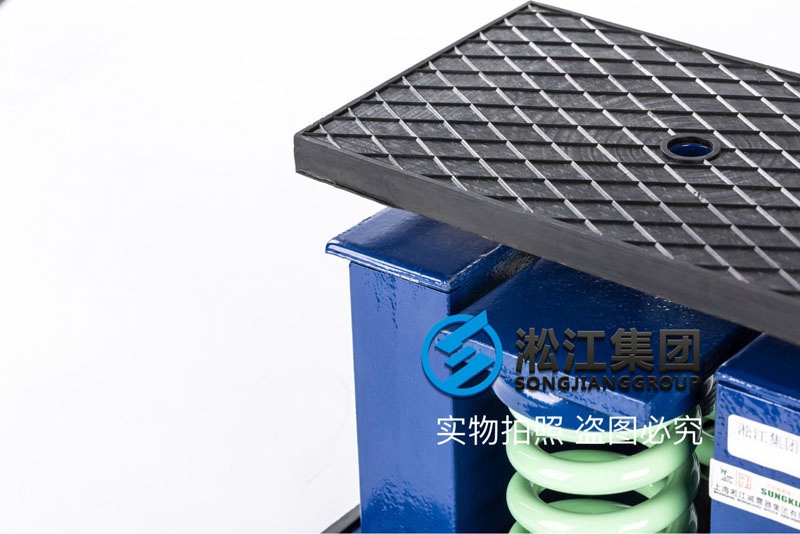

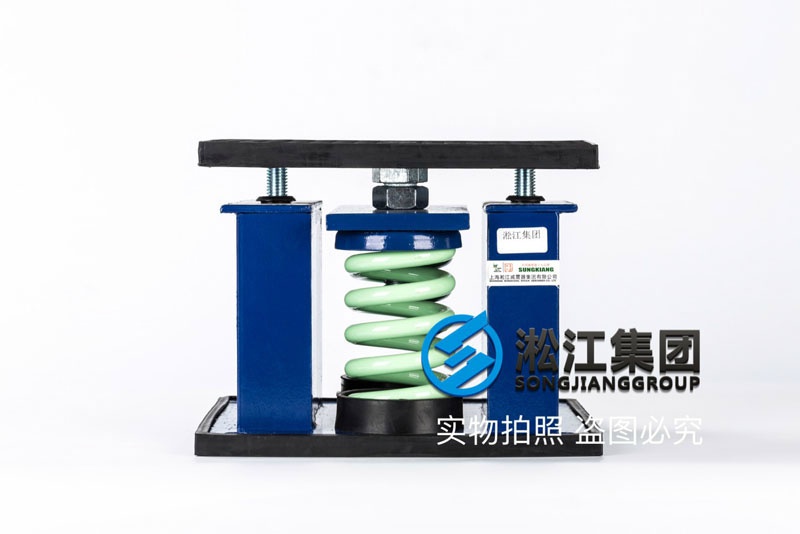

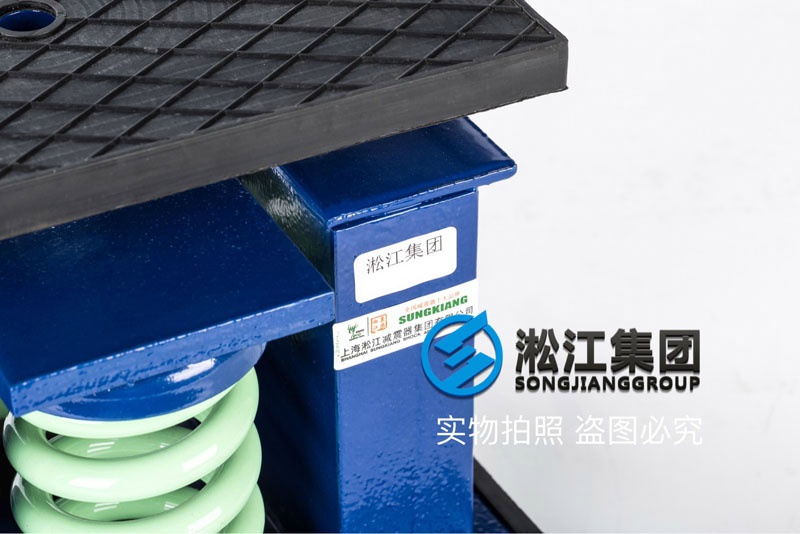

上海淞江减震器集团有限公司官方网站为您介绍：SHM-2-800干式变压器弹簧减震器信息，淞江集团为干式变压器推荐一款专用的弹簧减震器产品，该产品具有良好的低频降噪效果，可以将干式变压器的震动和噪音吸收效果好。
Shanghai Songjiang absorber group limited official website for your introduction: SHM-2-800 dry type transformer spring shock absorber, Songjiang group for dry-type transformer recommended spring shock absorber of a special, the product has a good effect in low frequency noise, can be dry transformer vibration and noise absorption of .
干式变压器弹簧减震器简介：
1、弹簧采用低频率值设计，并经喷塑处理，耐候性强，防震效果好。
2、顶部、底部均采用防滑耐磨橡胶以及固定螺栓，安全性能大大提高。
3、安装简单并根据实际需要调整水平及高度。
4、能够有效隔变压器的振动，并保护及延长其使用寿命。
5、了解该产品详细参数请查看：【样册P73】SHM型 可调式弹簧减振器
Product introduction:
1, the spring is designed with low frequency, and the weather resistance is good and the shock resistance is good.
2, the top and bottom are all used for anti-skid and wear-resistant rubber and fixed bolts, and the safety performance is greatly improved.
3. The installation is simple and the level and height are adjusted according to the actual needs.
4, the vibration of the transformer can be effectively separated and the of the transformer is protected and extended.
干式变压器弹簧减震器质保说明：
淞江集团所有弹簧减震器产品全部质保10年（限室内使用），本厂所有弹簧减震器弹簧采用汽车弹簧钢，并非工业弹簧钢可比，我们希望在您更换设备前无需更换或维修弹簧减震器。
Quality assurance:
All the spring shock absorber products of Songjiang group are all guaranteed for 10 years. All spring shock absorber springs of our factory are made of automobile spring steel instead of industrial spring steel. We hope that there will be no need to replace or repair spring shock absorbers before you change the equipment.
干式变压器介绍：
干式变压器广泛用于局部照明、高层建筑 、机场，码头CNC机械设备等场所，简单的说干式变压器就是指铁芯和绕组不浸渍在绝缘油中的变压器。
冷却方式分为自然空气冷却（AN）和强迫空气冷却（AF）。自然空冷时，变压器可在额定容量下长期连续运行。强迫风冷时，变压器输出容量可提高50%。适用于断续过负荷运行，或应急事故过负荷运行；由于过负荷时负载损耗和阻抗电压增幅较大，处于非经济运行状态，故不应使其处于长时间连续过负荷运行。
中国树脂绝缘干式变压器年产量已达10000MVA，成为世界上干式变压器产销量最大的国家之一。干式变压器现已被广泛用于电站、工厂、医院等几乎所有电气上。随着低噪（2500kVA以下配电变压器噪声已控制在50dB以内）、节能（空载损耗降低达25%）的SC(B)9系列的推广应用，使得中国干式变压器的性能指标及其制造技术已达到世界先进水平。
相关链接：SHM型可调阻尼弹簧减震器安装说明
SHM type spring shock absorber installation instructions related links
